dsh-ros2

ROS2 debugging toolset and robot-state vision analysis for DeepSeek Harness (DSH), shipped as a plugin. 中文版见 README_CN.md.

dsh-ros2 gives a DSH agent full robot development / debugging capabilities on any host with ROS2, organized in four capability tiers:

Tier	Capability	Safety boundary
L1	Read-only diagnostics: package/workspace/dependency checks, node/topic/service/action/param/interface enumeration, one-shot topic sampling, TF tree queries, whole-graph topology JSON, ros2doctor, bag summaries, MoveIt discovery, robot-profile load, safety-state read & VLM semantic arbitration	Pure read-only, no approval
L2	Approval-gated management: colcon build (background job), rosdep install, message skeleton generation, param set, bounded bag record, one-click ROS2 install, launch management, rosbag replay, MoveIt motion, zero-pose calibration, robot registration & topology learning, safety_monitor start / human-gated lock / unlock	Writes always ask first (fail-closed)
L3	Visualization: RViz2 / rqt lifecycle management, screenshots, multimodal vision description, xdotool-level window interaction	Local session operations
L4	Realtime vision: parallel VLM ROS2 node + image-topic acquisition (headless; vision_bringup periodically refreshes per-topic bridges), plus RViz2 offscreen rendering (OGRE kernel → /rviz/scene topic)	Pure software/GPU rendering, no display needed

All tools run plain ros2 / colcon / rosdep CLI commands on the host; L1 never modifies anything, L2 always asks first.

---

Screenshots

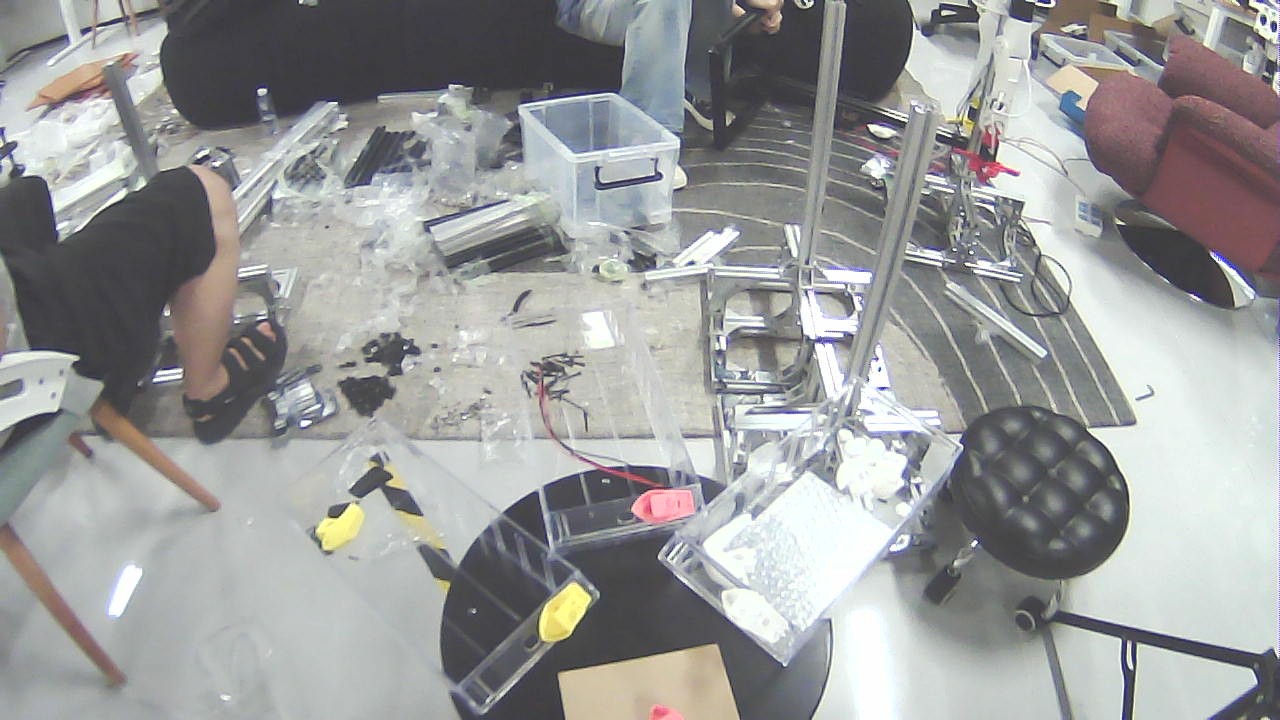

RViz2 offscreen render (latest lite_urdf, real material colors)	Head camera	Wrist-left camera	Wrist-right camera

Left: rviz_offscreen_node renders with the real rviz stack (OGRE) and publishes to the /rviz/scene image topic. Right: three frames grabbed from live camera topics by ros2_image_snapshot (1280×720). Full test record: docs/test-robot-state-vision.md.

---

Features

• Zero-intrusion diagnostics: 51 tools cover most ROS2 debugging scenarios — from "is the package installed?" to "what is on this topic right now?", one command, one answer;
• Whole-graph topology: ros2_graph folds nodes/publishers/subscribers/services/actions into one JSON — see the system structure in seconds;
• Approval-gated writes: builds, dependency installs, message scaffolding etc. go through the DSH approval service; fail-closed, denial = failure;
• Visualization as a service: "see" headlessly — screenshots / multimodal description / window interaction are fully local, no remote display;
• Parallel realtime vision: the VLM runs in a separate ROS2 process (vlm_node, service /vlm/describe); images come from topics (sensor_msgs/Image / CompressedImage); vision_bringup auto-creates one bridge per image topic, headless-ready;
• RViz2 offscreen rendering (motion render ~22 Hz on llvmpipe; 30 Hz full rate with GPU): the real rviz render kernel (rviz_common + OGRE) renders any .rviz scene on a virtual display and publishes it as an image topic — no screenshots, no X11 window-stacking dependency. Performance optimizations: open3d low-poly meshes (scripts/simplify_visual_meshes.py) + direct OGRE pixel read (no PNG round-trip) + double-render elimination → motion rendering 1.9 → ~22 Hz on llvmpipe (11×), and 30 Hz full rate with NVIDIA GPU passthrough (v0.9.3), memory −2.5×;
• Real-time safety framework (safety_monitor node + robot_safety_* tools, see Safety framework): layered defense — tool-layer safety gate (pre-execution /safety/state check) → reactive monitors (motion tracking/stall with hysteresis, joint-feedback loss, watchdog, optional torque) → event-driven VLM semantic arbitration → human arbitration. Latched NORMAL/LOCKED state machine (lock persists until a human unlocks; non-fatal events never lock); every threshold/topic/lock-action is registered per robot in the profile safety section; the geometric pre-check (joint limits / velocity / FK self-collision) is a reserved layer;
• Bundled skills (4): ros2-diagnostics (which tool to use when, narrow-down methodology), robot-state-vision-analysis (status → offscreen render → VLM → cross-check), robot-registration (first-contact body profile + topology baseline) and robot-retrieval (instant profile load and bring-up).

---

Quick start

Requirements

• A host with ROS2 (Jazzy verified; Humble should work), ros2 on PATH;
• Node ^22.19 || >=24 (DSH host requirement);
• L4 vision additionally needs Python 3 rclpy and an OpenAI-compatible VLM gateway (e.g. Gemini or a self-hosted gateway).

Install the plugin

dsh plugin --profile <profile> add dsh-ros2

Minimal configuration

# fragment of a DSH profile plugin config
- insert:
    - id: dsh-ros2
      name: dsh-ros2
      config:
        rosSetup: source /opt/ros/jazzy/setup.bash &&   # prepare the ROS2 environment
        workspaceRoot: /home/you/ros2_ws                 # default cwd for colcon/rosdep
        vision:
          provider: gemini                               # mock | gemini | openai
          apiKey: ${GEMINI_API_KEY}                      # inject via env/secret manager, never hard-code
        safetyStrict: warn                               # motion-tool gate when the safety monitor is unreachable: 'warn' (default) | 'reject' (fail-closed); LOCKED always rejects

Three-minute taste

ros2_graph                          # whole system topology in one shot
ros2_topic_list                     # all topics and types
ros2_topic_echo /joint_states       # sample one frame of joint states
ros2_tf_list                        # TF tree edges
ros2_doctor                         # system health report

---

Tool reference

L1 read-only diagnostics

Tool	Command behind it	Purpose
ros2_pkg_list	ros2 pkg list	Installed packages (optional substring filter)
ros2_colcon_list	colcon list	Packages in a colcon workspace
ros2_rosdep_check	rosdep check --from-paths src --ignore-src	Dependency health (missing deps = finding, not error)
ros2_node_list	ros2 node list	Running nodes
ros2_node_info	ros2 node info <node> [-v]	Subscribers / publishers / services / actions of one node
ros2_topic_list	ros2 topic list -t	Topics with types
ros2_topic_info	ros2 topic info <topic> [-v]	Topic metadata / QoS
ros2_topic_echo	ros2 topic echo <topic> --once	One message sample (JSON when possible)
ros2_service_list	ros2 service list -t	Services with types
ros2_action_list	ros2 action list -t	Actions with types
ros2_param_list	ros2 param list <node>	Parameters of a node
ros2_interface_show	ros2 interface show <type>	Full field definition of a message/service/action
ros2_graph	ros2 node list + per-node node info	Folded JSON topology graph
ros2_tf_list	ros2 topic echo /tf --once	Current TF tree edges
ros2_tf_echo	ros2 topic echo /tf --once	Transform between two frames
ros2_doctor	ros2 doctor	System health report
ros2_bag_info	ros2 bag info <path>	Bag summary
moveit_discover	scans MoveIt packages + parses SRDF + probes move_group	Discover MoveIt2 config packages (any package shipping an SRDF), their planning groups and named poses, and whether /move_action / /execute_trajectory / /compute_cartesian_path are online. Pass srdf to parse a specific file directly — generic, not bound to a specific package
robot_safety_state	ros2 topic echo /safety/state --once	Read the latched safety state (NORMAL / LOCKED + severity + trigger cause + detail); reports monitor_running: false when the monitor is offline
robot_safety_arbitrate	ros2 run dsh_ros2_safety safety_vlm_arbitrate ...	Event-driven VLM semantic arbitration (plan change / post-anomaly): fixed-format prompt + fresh offscreen frame via /vlm/describe; any non-safe verdict flags human arbitration
motion_validate	motion_validator.py --trajectory <file> --config <json>	Deterministic pre-execution validation (read-only): joint limits, NaN/Inf, names & group coverage, timestamps/duration, freshness, optional workspace box, fingerprint + TTL — collision/singularity stay with MoveIt planning

L2 management (approval-gated)

Every L2 tool performs a write operation and asks the user first via the DSH approval service (fail-closed when unavailable or denied). The read-only helpers ros2_jobs_list / ros2_job_status need no approval.

Tool	Command behind it	Notes
ros2_colcon_build	colcon build [--packages-select ...] [--symlink-install]	Runs as a background job (ctx.jobs); returns jobId, track with ros2_job_status
ros2_rosdep_install	rosdep install --from-paths src --ignore-src -y	dryRun previews with --simulate
ros2_interface_create	writes <root>/<pkg>/<msg|srv|action>/<Name>.*	Skeleton generator; never overwrites existing files
ros2_param_set	ros2 param set <node> <param> <value>	JSON numbers/booleans are typed, other values treated as strings
ros2_bag_record	ros2 bag record <topics...> --output <dir>	Bounded recording: stops automatically after duration seconds
ros2_jobs_list	ctx.jobs.list	Background jobs of this agent (read-only)
ros2_job_status	ctx.jobs.get	Status of one job by id (read-only)
ros2_install	FishROS one-click installer (interactive PTY session)	When ROS2 is missing: check probes (installed / installed-not-sourced / absent); start (approval) launches the installer; send / status / stop drive and observe the interactive menus
ros2_bag_play	ros2 bag play <path> [--topics ...] [--rate X] [--loop] [--start-offset S]	Replay a rosbag into its topics (approval-gated; publishes to the graph); foreground for timeoutMs
ros2_launch	ros2 launch <pkg> <launch_file> [args]	Launch a launch file as a background job (approval-gated; returns jobId, stop via DSH job controls)
ros2_zero_pose_semantics	publish-zero → offscreen render → VLM → confirm	Calibrate zero-pose semantics interactively (generic): analyze renders the all-zero pose and asks the VLM its posture across three aspects (arm: lateral_raise/hanging, elbow: forward/upward, palm/camera-mount: up/forward/down); confirm records the user-approved combo (or a customText free-text description) to ~/.dsh-ros2/zero-pose.yaml for skills
robot_register	collects URDF/TF/cameras/MoveIt/zero-pose → writes ~/.dsh-ros2/robots/<name>.yaml	Register a robot body profile on first contact (approval-gated) for instant later reuse
robot_load	reads ~/.dsh-ros2/robots/<name>.yaml	Load a registered robot profile as structured JSON (fast path — no discovery); empty name lists all profiles
robot_topology	aggregate snapshot + progressive node learning (strict schema)	Robot comms topology trade-off: snapshot (approval) records node/topic/service lists (light, not verbose); learn (approval) records ONE important node's role/description + pub/sub/srv/act; show (read-only) reads them back
moveit_move	unified: /move_action + /execute_trajectory	One tool, five essential modes (approval-gated): joint_abs, joint_rel, pose_abs, pose_rel (frame ee/world), trajectory. Generic: standard moveit_msgs + SRDF only. Single motion path: plan → deterministic validation (motion_validator, robot profile for full limits) → human approval (validation summary shown) → execute → verify. Gates on /safety/state (LOCKED always rejected; monitor-down per safetyStrict)
robot_safety_start	ros2 run dsh_ros2_safety safety_monitor --profile <yaml>	Start the generic safety monitor as a background job (approval-gated); all robot-specific values come from the profile safety section
robot_safety_lock / robot_safety_unlock	`ros2 service call /safety/set_lock	unlock ...`
moveit_status	probes move_group interfaces + samples /joint_states	Runtime status: online probe + current joint state + SRDF planning frame (read-only)

L3 visualization

GUI lifecycle + screenshots + multimodal vision ("see first, then move") + xdotool-level interaction ("see and move"). Screenshots use Pillow ImageGrab on X11 (no extra CLI install); vision providers are pluggable; interaction requires xdotool (sudo apt install xdotool).

Tool	Purpose
ros2_gui_start	Launch RViz2 (with -d config) / rqt_graph / rqt on the host display; sessions are tracked
ros2_gui_list	Tracked sessions + X11 windows (wmctrl -lG)
ros2_gui_close	Close a session (SIGTERM)
ros2_screenshot	Capture the screen or one window to a PNG
ros2_vision_describe	Describe an image with the configured multimodal model (Gemini / OpenAI / mock)
ros2_gui_observe	Ensure a GUI is running → screenshot → return the multimodal description (the "see it" workflow)
ros2_gui_interact	unified xdotool interaction: action=click (click/scroll, button 4/5 = scroll), action=drag (press-drag-release: RViz2 orbit/pan/zoom), action=key (combos like ctrl+shift+r or typed text)

Interaction recipes (model-facing): orbit the RViz2 view with ros2_gui_interact {action: "drag", windowTitle: "rviz2", button: 1, toX: <dx>, toY: <dy>}, zoom with action: "drag", button: 3, reload a display config with ros2_gui_interact {action: "key", keys: "ctrl+shift+r"}. When wmctrl cannot enumerate windows (e.g. no window manager on the display), window-relative interaction reports "window not found" — fall back to absolute screen coordinates. Interaction is local to the host session (no approval, same as other L3 tools).

L4 realtime vision (parallel VLM over ROS2, headless image topics)

Perception matches the robot-control stack: the VLM runs in a separate ROS2 process (vlm_node, service /vlm/describe + cached topic /vlm/description), and images come from sensor_msgs/Image topics, never X11 screenshots — headless-ready. Requires the dsh_ros2_vlm ROS2 package (vlm/); build/run see docs/architecture.md §4.

Tool	Purpose
ros2_image_snapshot	Grab the latest frame from an image topic (raw / compressed) and save as JPEG
ros2_vlm_analyze	Analyze an image file or the bridge's latest frame (useBridge) via the parallel VLM
ros2_vision_topics	List live image topics with their auto bridge service names
ros2_vision_analyze	Analyze any topic's latest frame via its auto bridge (ros2_vision_analyze {topic, prompt})

# build + launch the vision pipeline (auto bridge per image topic)
mkdir -p /tmp/vlm_ws/src && ln -s <repo>/vlm /tmp/vlm_ws/src/dsh_ros2_vlm
cd /tmp/vlm_ws && colcon build --symlink-install && source install/setup.bash
VLM_API_KEY=... ros2 run dsh_ros2_vlm vlm_node &       # parallel VLM process
ros2 run dsh_ros2_vlm vision_bringup &                 # discover topics, one bridge each

RViz2 offscreen rendering (dsh_ros2_rviz_offscreen)

The real rviz rendering stack (rviz_common + OGRE + rviz_default_plugins) loads a .rviz scene offscreen under Xvfb and publishes it to the /rviz/scene image topic — read from the render kernel, not X screenshots, no window-stacking dependency.

# build (needs a colcon workspace like vlm_ws)
ln -s <repo>/offscreen /tmp/vlm_ws/src/dsh_ros2_rviz_offscreen
cd /tmp/vlm_ws && colcon build --symlink-install && source install/setup.bash
# run (config_path points at a .rviz scene file)
xvfb-run -a -s "-screen 0 1280x800x24" ros2 run dsh_ros2_rviz_offscreen rviz_offscreen_node \
  --ros-args -p config_path:=/tmp/robot_scene.rviz -p topic:=/rviz/scene \
  -p width:=800 -p height:=600 -p rate:=5.0

Robot body mesh rendering essentials (pitfalls collected; details in docs/architecture.md §4.4):

1. Jazzy RobotModel properties: use Description Source: Topic + Description Topic: <topic> (the legacy Robot Description: is ignored → Links empty);
2. mesh paths: use absolute paths or a file:// prefix in the URDF (bare paths fail in resource_retriever); the description publisher must stay alive (transient-local, late subscribers miss it otherwise);
3. URDF must bind to TF by name: URDF link names must exactly match the live TF frame names (publishing the robot's actual /robot_description works). Mismatch → every link transform lookup fails → all meshes pile at the fixed-frame origin;
4. View distance: Orbit Distance ≈ 1.5–2.0 m for an RViz-like close full-body view (> 5 m shrinks the robot to a tiny center blob);
5. Health signal: ~3 s after startup the node logs FM: ... frames=N and transformHasProblems(...)=0 — meshes correctly bound to TF.

---

MoveIt2 motion — five essential modes, one tool

Design intent. Robot motion through MoveIt is, at its core, only five
operations: set joints absolutely, nudge joints relatively, place the
end-effector at an absolute pose, move it by a relative delta, or execute a
pre-planned trajectory. Rather than a growing zoo of named tools, dsh-ros2
abstracts them into one tool moveit_move with a mode parameter — so the
interface stays small, predictable and scriptable, and works with any MoveIt
package (it reads the SRDF and speaks only standard moveit_msgs).

Tool	Role
moveit_discover (L1)	Read any MoveIt package's SRDF: planning groups, named poses, chain tip; probe the standard interfaces (/move_action, /execute_trajectory, ...) online
moveit_status (L1)	Runtime probe: interfaces online + current /joint_states sample + SRDF planning frame
moveit_move (L2, approval)	One tool, five modes: joint_abs (joints "j1:=v1 j2:=v2"), joint_rel (deltaJoints = current + delta), pose_abs (pose "x y z rx ry rz" in the planning frame), pose_rel (deltaPose "dx dy dz drx dry drz", frame ee/world), trajectory (execute a saved trajectory JSON)

moveit_move {mode: "joint_abs", group: "right_arm", joints: "right_shoulder_roll:=0.5"}
moveit_move {mode: "joint_rel", group: "right_arm", deltaJoints: "right_elbow_pitch:=-0.2"}
moveit_move {mode: "pose_rel",  group: "right_arm", deltaPose: "0.05 0 0 0 0 0"}
moveit_move {mode: "pose_abs",  group: "right_arm", pose: "0.5 0 0.8 0 0 0"}
moveit_move {mode: "trajectory", group: "right_arm", trajectory: "/tmp/traj.json"}

How it works. moveit_discover/moveit_status tell you what you can move
(groups, joints, EE link from the SRDF chain tip, online state); moveit_move
turns any mode into a standard MoveGroup goal (/move_action), executes via
/execute_trajectory, and — with planOnly + trajectoryOut — saves the
planned trajectory so mode: "trajectory" can run it later (plan/execute
separation). Nothing is bound to a specific MoveIt package; only the SRDF path
matters (auto-resolved by package scan, or explicit srdf/package).

---

Safety framework

Design intent. A two-tier strategy that keeps real-time and semantic
judgment apart (full contract: docs/safety-handover.md, the handover doc for
downstream robot-adaptation agents — generic framework/interfaces belong here,
body-specific data sources/schemes/algorithms belong downstream):

tool-layer safety gate (pre-execution: /safety/state LOCKED; monitor-down per safetyStrict)
  → reactive monitors (in-execution: motion tracking/stall + hysteresis,
    joint-feedback loss, watchdog, optional torque; detect at control frequency,
    response budget ≤100 ms)
  → VLM semantic arbitration (post plan-change / anomaly, seconds — pulled up only when needed)
  → human arbitration (non-safe verdicts always escalate; human-gated unlock)

• safety_monitor node (dsh_ros2_safety package): subscribes the joint
  feedback (+ optional commanded stream / torque stream), runs the checkers on
  a control_frequency timer, and latches LOCKED on any CRITICAL event —
  the latch persists until a human unlocks (no auto-reset into the same danger).
  Publishes /safety/state (transient-local), /safety/event,
  /safety/heartbeat, /safety/lock_active; services /safety/get_state,
  /safety/unlock, /safety/set_lock.
• Latched lock, non-fatal never locks: any CRITICAL event latches LOCKED
  (the latch persists until a human unlocks — no auto-reset into the same
  danger); watchdog separates critical (down → lock) from observed (down →
  WARNING only); single-frame noise is filtered by M-of-K hysteresis; a
  WARNING never latches. Tool-layer fail-closed on monitor-down is per
  safetyStrict: 'reject' (default 'warn' proceeds with a warning).
• Per-robot registration: robot_register writes a generic safety
  section (URDF-derived velocity/effort limits) and auto-launches the monitor;
  robot_profile.py safety set <key> <json> updates any threshold/topic/list
  (schema-validated). Torque checking auto-disables when no effort feedback
  exists. Reserved layers (interfaces registered, not implemented): the
  geometric pre-check (joint-limit / velocity / FK self-collision on the command
  path — motion.max_velocity / max_acceleration), the computed-torque
  feedforward input (torque.feedforward_topic), YOLO-style lightweight
  triggers, and the non-ROS estop path (estop).
• Tool-layer gate: moveit_move consults /safety/state before executing
  — LOCKED always rejected (SAFETY_LOCKED); if the monitor is unreachable,
  safetyStrict: 'reject' (fail-closed) or 'warn' (default) proceed-with-
  warning. robot_safety_arbitrate runs the fixed-format VLM arbitration and
  flags any non-safe verdict for human arbitration.
• Forensics: a ring buffer of joint/torque samples is dumped to
  forensics.dump_dir on every CRITICAL lock, for post-hoc / VLM diagnosis.

# build the safety package (same colcon workspace as vlm/ and offscreen/)
ln -s <repo>/safety /tmp/vlm_ws/src/dsh_ros2_safety
cd /tmp/vlm_ws && colcon build --symlink-install && source install/setup.bash

The safety_core pure logic ships with a fault-injection self test
(python3 safety/scripts/safety_core.py --selftest, 12 scenarios) — no ROS2
needed to verify the state machine.

Robot profiles & communication topology

Design intent. A robot's body (URDF links/joints, cameras, MoveIt groups,
zero-pose semantics) and its comms graph are costly to rediscover every time.
The plugin persists them as a structured profile (~/.dsh-ros2/robots/<name>.yaml):
register once on first contact, then load instantly forever after. For the
comms graph, full verbosity does not scale (a complex robot has hundreds of
topics/services), so the design is a trade-off: an aggregate snapshot
(light node/topic/service lists) plus progressive learning of only the
important nodes as you actually work with them.

Tool	Role
robot_register (L2)	Collect body info (URDF links/joints, TF root, cameras, MoveIt SRDF groups, auto-links the zero-pose calibration and a generic safety section with URDF-derived limits) into the profile; auto-launches the safety monitor (startSafety: false to skip)
robot_load (L1)	Load the profile as structured JSON — the fast path, no rediscovery; empty name lists all
robot_topology (L1/L2)	Comms graph: snapshot (L2, aggregate lists), learn (L2, one important node's role/description + pub/sub/srv/act, strict schema), show (L1, read back), diagnose (L1 — knowledge-augmented diagnosis: cross-references the learned knowledge base + snapshot against the LIVE graph: missing / new / drift / topic_drift), search (L1 — efficient retrieval in the knowledge archive: reverse-lookup by topic / keyword match on name/role/description/connections)
ros2_zero_pose_semantics (L2)	Calibrate zero pose via render + VLM + user confirm (arm/elbow/palm combos or free text); the profile auto-includes it

Two bundled skills complete the workflow: robot-registration (first-contact
flow: ask name/URDF → collect → register → verify, plus the topology baseline
snapshot) and robot-retrieval (load the profile instantly and bring up
renders/diagnostics/motion from it, including the learned topology and zero-pose
semantics).

How it works. Everything is plain structured YAML under ~/.dsh-ros2/ —
robots/<name>.yaml (body + topology) and zero-pose.yaml (calibration).
robot_register snapshots the body; robot_topology snapshot snapshots the
aggregate layer; robot_topology learn appends one node at a time (idempotent
merge) as you discover what matters. robot_load and robot_topology show read
them back instantly — one call instead of N discovery calls.

The knowledge base is consumed, not just stored. robot_topology diagnose
(L1, read-only) is the entry point for knowledge-augmented diagnosis: it
loads the learned nodes + snapshot and cross-references them against the LIVE
ros2 graph —

• missing: learned nodes that are offline now (controllers/publishers down) — highest priority;
• new: live nodes not in the knowledge base (learn candidates);
• matched[].drift: per learned node, expected pub/sub/srv/act vs actual (a missing topic = a gone connection; a new topic = the node changed);
• topic_drift: aggregate snapshot topics vs live topics.

The ros2-diagnostics and robot-retrieval skills both start diagnosis with
diagnose and close the loop by learning important new nodes — so the
knowledge base improves with every session and every diagnosis gets faster.

---

Bundled skills

Skill	Content
ros2-diagnostics	Which tool to use when, narrow-down methodology, debugging "topic has no data" / message-mismatch / TF problems
robot-state-vision-analysis	Full pipeline: status → offscreen render → VLM → cross-check (includes Jazzy Description Source/Topic, URDF↔TF frame-name matching, file:// meshes, view distance, FM frames signal, calibrated zero-pose semantics)
robot-registration	First-contact flow: ask name/URDF → collect body info + zero-pose calibration → robot_register → topology baseline snapshot
robot-retrieval	Instant profile load (robot_load) and bring-up of renders / diagnostics / motion; read & progressively learn the comms topology (robot_topology)

---

Configuration

Key	Type	Default	Meaning
rosSetup	string	''	Shell prefix to prepare the environment, e.g. source /opt/ros/jazzy/setup.bash &&
timeoutMs	number	15000	Per-command timeout
rosLogDir	string	''	Override ROS_LOG_DIR (helps when ~/.ros/log is not writable)
workspaceRoot	string	''	cwd for colcon / rosdep when a tool omits cwd
includeStderr	boolean	false	Attach trailing stderr to successful results
display	string	''	DISPLAY override for GUI/screenshot tools
screenshotDir	string	''	Screenshot output dir (default $TMPDIR/dsh-ros2)
screenshotCommand	string	''	Custom screenshot command; {output} is replaced with the PNG path
vision.provider	string	'mock'	mock | gemini | openai
vision.apiKey	string	''	Your API key (user-supplied; never logged)
vision.model	string	''	Model override (e.g. gemini-2.5-flash, gpt-4o-mini)
vision.baseUrl	string	''	API base URL override (OpenAI-compatible endpoints)

rosLogDir also covers ROS2 Python CLIs spawned by tools (topic echo/pub, ros2 run); additionally runCommand auto-falls back to a writable dir when ~/.ros/log is not writable.

---

Project layout

dsh-ros2/
├── src/                  # DSH plugin core (TypeScript)
│   ├── index.ts          # entry: registers 51 tools + 4 skills
│   ├── tools.ts          # tool definitions (L1/L2/L3 params & command mapping)
│   ├── vision.ts         # L4 vision tools (snapshot / analyze / topics)
│   ├── gui.ts            # L3 GUI lifecycle & interaction
│   ├── skill.ts          # 4 skills: diagnostics / vision / registration / retrieval
│   ├── runner.ts         # command runner (timeout/log/approval/background-job seams)
│   └── config.ts         # configuration read & validation
├── vlm/                  # ROS2 package dsh_ros2_vlm (Python): vlm_node / vision_bringup / vlm_bridge_node / image_snapshot / vlm_call / vlm_bridge_call
├── offscreen/            # ROS2 package dsh_ros2_rviz_offscreen (C++): rviz_offscreen_node (OGRE offscreen render → /rviz/scene)
├── safety/               # ROS2 package dsh_ros2_safety (Python): safety_monitor node + safety_core (pure logic, --selftest) + safety_vlm_arbitrate + SafetyState/Event msgs + Unlock/SetLock srvs
├── docs/                 # architecture.md · compatibility.md · safety.md / safety-handover.md / safety-todo.md / safety-gpt-review.md · test-robot-state-vision.md / test-gpu-passthrough.md · screenshots
├── tests/                # vitest (115 cases; CLI outputs mocked)
├── .github/workflows/    # CI: Node 22/24 → typecheck/test/build/pack validation
├── PUBLISH.md            # open-source publishing checklist (GitHub + npm + DSH community)
└── CHANGELOG.md          # version history (Keep a Changelog)

---

Troubleshooting / FAQ

• ~/.ros/log Permission denied: ROS2 cannot write its log dir. Set rosLogDir (e.g. /tmp/ros-log); runCommand also falls back automatically.
• A flood of RTPS_TRANSPORT_SHM / FastDDS SHM warnings in stderr: harmless noise when SHM transport is unavailable (common in containers/restricted environments); tools drop it by default.
• ros2 topic echo returns empty: check ros2_topic_info -v for publisher count and QoS; sample transient-local topics with --qos-durability transient_local.
• Offscreen render: "all parts piled at origin": URDF link names do not match TF frame names (see mesh essentials #3); check the node log FM transformHasProblems(<link>)=1 first.
• RobotModel shows no meshes (Links empty): on Jazzy you must use Description Source/Topic; the legacy Robot Description: does nothing.
• Could not load resource ... Unable to open file: mesh paths need absolute paths or a file:// prefix.
• Description missing after the publisher exits: the URDF publisher must stay alive (transient-local only re-sends once to late subscribers; gone when the process exits).
• vision_bringup missed some image topics (2/4 measured): fixed — it now refreshes discovery every --refresh seconds (default 10), auto-spawning bridges for topics that appear later and stopping bridges for topics that disappear.

---

Development

pnpm install
pnpm run typecheck   # tsc --noEmit
pnpm run test        # vitest (115 cases; CLI outputs mocked)
pnpm run build       # tsc -> lib/ + lib/types/

CI (.github/workflows/ci.yml): on push to main / PRs, runs typecheck/test/build on Node 22 and 24, and validates that the pnpm pack artifact contains the patch layer (cordis.patch.yml) and the build output.

Release workflow (npm & GitHub Releases): see PUBLISH.md.

---

Roadmap

• vision_bringup polling/refresh discovery (auto-bridge late topics, stop bridges for gone topics);
• Zero-pose semantics: generic calibration flow (ros2_zero_pose_semantics, render + VLM + user confirm, 3-axis combos) linked into robot profiles;
• npm publishing (pnpm publish --access public, requires npm login);
• More ROS2 distros (Humble / Rolling) compatibility validation.

---

Docs

Doc	Content
docs/architecture.md	Design overview, four tiers, L4 vision & offscreen rendering architecture, performance evolution, safety model
docs/compatibility.md	Compatibility baseline
docs/safety.md	Safety boundary: six layers (agent permission / human approval / motion validation / execution monitoring / post-execution verification / physical robot safety), fail-closed & degradation policy, "DSH is not a functional-safety system"
docs/safety-handover.md	Handover for downstream robot-adaptation agents: generic framework/interfaces vs body-specific data sources/algorithms, profile safety schema, interfaces
docs/safety-todo.md	GPT review decisions + batches: 0.14.1 done (deterministic validation), 0.15+ (GUI whitelist / audit / C++ real-time node ...)
docs/test-robot-state-vision.md	End-to-end real-robot tests: pipeline, realtime, mesh/TF binding fix & verification, 4-channel joint analysis (with images)
docs/test-gpu-passthrough.md	GPU passthrough verification: hardware, troubleshooting, results, usage
CHANGELOG.md	Version history (Keep a Changelog)

---

Contributing

Issues and PRs welcome (in Chinese or English). Please keep pnpm run typecheck && pnpm run test && pnpm run build green and update the relevant docs.

Acknowledgments

• DeepSeek Harness — plugin host framework;
• ROS2 / RViz2 community — rendering and toolchain foundations.

License

MIT
